Against the merged SMP coverage report -- every build configuration instrumented and unioned -- sixty-four lines of common_smp/src were uncovered, 5114 of 5178. Fifty-three of them are closed here and the report reads 5167 of 5178. The SMP coverage floor goes from 98 to 99 with it. Thirty-six of the sixty-four were one loop repeated four times: the walk in tx_block_pool_delete, tx_byte_pool_delete, tx_event_flags_delete and tx_queue_delete that releases every thread suspended on the object with TX_DELETED. The suite deletes all four object types after every single test, and that is exactly why the loop never ran. test_control_cleanup in the ThreadX suite deletes the application's objects first and its threads last, so a test that ends with a thread parked on a queue has that thread walked out of it by tx_queue_delete. The SMP suite's cleanup deletes the threads first, deliberately -- it was changed so that no application-owned object is still referenced when the object loops run, which is what stopped a class of teardown hang. The side effect is that all four deletes now run against an empty suspension list. tx_semaphore_delete is the one member of the family that was already covered, because threadx_semaphore_delete_test deletes a busy semaphore on purpose. threadx_object_delete_suspension_test is the same idea for the other four. Two threads suspend on each of a block pool, a byte pool, an event flags group and a queue; the control thread waits on the object's own suspended count through tx_*_info_get rather than on an ordering it cannot guarantee across four cores, deletes the object, and checks both waiters came out with TX_DELETED. Two waiters rather than one so the loop takes its back edge as well as its body, and every wait is bounded in ticks so a suspension that never arrives fails the test instead of hanging it. threadx_trace_entry_update_test and threadx_thread_misaligned_stack_test are ports of the two tests that closed the equivalent gaps in common/src, and close fourteen more lines here: tx_block_allocate 123, 175, 182, 319 and 326, tx_byte_allocate 130, 210, 217, 359 and 366, tx_thread_system_suspend 504 and 560, tx_trace_object_register 221, and tx_thread_create 133. The one substantive change is core confinement. The trace test needs thread 0 to suspend and thread 1 to then release what it waits for; on four cores thread 1 gives the block back before thread 0 has suspended and the update block behind the suspension is never reached, so both threads are excluded from cores 1 to 3. The misaligned stack test needed no such change. threadx_byte_memory_long_search_test closes three of the eleven in tx_byte_pool_search. Lines 264, 267 and 270 are the TX_BYTE_POOL_MULTIPLE_BLOCK_SEARCH limit -- twenty on this port -- where a long search drops and retakes protection so that it cannot lock the other cores out for the whole walk. No byte pool in the suite ever had twenty fragments. This one is filled with small chunks until it refuses another and then has every second chunk released, so the free fragments are never adjacent and cannot be merged, and the request is larger than any of them but smaller than the pool's theoretical total, which is what makes _tx_byte_pool_search walk rather than refuse at the door. The layout is asserted rather than assumed: the test checks the fragment count and checks the probe request really does fail before the workers start, because either would otherwise turn it into a silent no-op. Eleven lines remain and they are not a to-do list. Eight are the delay loop in tx_byte_pool_search that fires when another thread claims the pool inside the window the search opens. The Linux SMP port serialises all four cores on one pthread mutex, so that window is an unlock immediately followed by a lock on that mutex, and glibc hands an uncontended mutex straight back to the thread that just released it: measured over 180,003 windows across three cores, with zero handovers. The shipped test therefore does 250 searches per worker rather than the sixty thousand that probe used, because the twenty-block threshold is crossed by the first search. The other three are in tx_thread_smp_utilities. Line 149 is a range guard placed after the shift it is meant to guard, so reaching it needs a shift by the width of the type; the fix is to move the check above the shift, matching the TX_MAX_PRIORITIES > 32 variant of the same function, and that belongs in its own change. Lines 1073 and 1074 need a mutex owner that is genuinely executing on another core when a waiter suspends, and three shapes were tried without producing one on this port. Measured twice before and twice after, every gcda deleted between runs and 570 of 570 tests passing each time: 5114 of 5178 both times before, 5167 of 5178 both times after. Branch coverage goes from 2768 to 2821 and 2823 of 3548. A floor of 99 needs 5127, so the ratchet lands with forty lines of headroom against a numerator that has been seen moving by two between runs. Assisted-by: Claude Opus 5 <noreply@anthropic.com>
Eclipse ThreadX RTOS
This advanced real-time operating system (RTOS) is designed specifically for deeply embedded applications. Among the multiple benefits it provides are advanced scheduling facilities, message passing, interrupt management, and messaging services. Eclipse ThreadX RTOS has many advanced features, including picokernel architecture, preemption threshold, event chaining, and a rich set of system services.
Here are the key features and modules of ThreadX:
Getting Started
Eclipse ThreadX has been integrated to the semiconductor's SDKs and development environment. You can develop using the tools of choice from STMicroelectronics, NXP, Renesas and Microchip.
We also provide getting started guide and samples using development boards from semiconductors you can build and test with.
See Overview of Eclipse ThreadX RTOS for the high-level overview.
Repository Structure and Usage
Directory layout
.
├── cmake # CMakelist files for building the project
├── common # Core ThreadX files
├── common_modules # Core ThreadX module files
├── common_smp # Core ThreadX SMP files
├── docs # Documentation supplements
├── ports # Architecture and compiler specific files. See below for directory breakdown
│ ├── cortex_m7
│ │ ├── iar # Example IAR compiler sample project
│ │ │ ├── example build # IAR workspace and sample project files
│ │ │ ├── inc # tx_port.h for this architecture
│ │ │ └── src # Source files for this architecture
│ │ ├── ac6 # Example ac6/Keil sample project
│ │ ├── gnu # Example gnu sample project
│ │ └── ...
│ └── ...
├── ports_modules # Architecture and compiler specific files for threadX modules
├── ports_smp # Architecture and compiler specific files for threadX SMP
├── samples # demo_threadx.c
└── utility # Test cases and utilities
Branches & Releases
The master branch has the most recent code with all new features and bug fixes. It does not represent the latest General Availability (GA) release of the library. Each official release (preview or GA) will be tagged to mark the commit and push it into the Github releases tab, e.g. v6.2-rel.
When you see xx-xx-xxxx, 6.x or x.x in function header, this means the file is not officially released yet. They will be updated in the next release. See example below.
/**************************************************************************/
/* */
/* FUNCTION RELEASE */
/* */
/* _tx_initialize_low_level Cortex-M23/GNU */
/* 6.x */
/* AUTHOR */
/* */
/* Scott Larson, Microsoft Corporation */
/* */
/* DESCRIPTION */
/* */
/* This function is responsible for any low-level processor */
/* initialization, including setting up interrupt vectors, setting */
/* up a periodic timer interrupt source, saving the system stack */
/* pointer for use in ISR processing later, and finding the first */
/* available RAM memory address for tx_application_define. */
/* */
/* INPUT */
/* */
/* None */
/* */
/* OUTPUT */
/* */
/* None */
/* */
/* CALLS */
/* */
/* None */
/* */
/* CALLED BY */
/* */
/* _tx_initialize_kernel_enter ThreadX entry function */
/* */
/* RELEASE HISTORY */
/* */
/* DATE NAME DESCRIPTION */
/* */
/* 09-30-2020 Scott Larson Initial Version 6.1 */
/* xx-xx-xxxx Scott Larson Include tx_user.h, */
/* resulting in version 6.x */
/* */
/**************************************************************************/
Supported Architecture Ports
ThreadX
arc_em cortex_a12 cortex_m0 cortex_r4
arc_hs cortex_a15 cortex_m23 cortex_r5
arm11 cortex_a17 cortex_m3 cortex_r7
arm9 cortex_a34 cortex_m33
c667x cortex_a35 cortex_m4
linux cortex_a5 cortex_m55
risc-v32 cortex_a53 cortex_m7
rxv1 cortex_a55 cortex_m85
rxv2 cortex_a57
rxv3 cortex_a5x
win32 cortex_a65
xtensa cortex_a65ae
cortex_a7
cortex_a72
cortex_a73
cortex_a75
cortex_a76
cortex_a76ae
cortex_a77
cortex_a8
cortex_a9
ThreadX Modules
Eclipse ThreadX Modules component provides an infrastructure for applications to dynamically load modules that are built separately from the resident portion of the application.
cortex_a35
cortex_a35_smp
cortex_a7
cortex_m0+
cortex_m23
cortex_m3
cortex_m33
cortex_m4
cortex_m7
cortex_r4
rxv2
ThreadX SMP
Eclipse ThreadX SMP is a high-performance real-time SMP kernel designed specifically for embedded applications.
arc_hs_smp
cortex_a34_smp
cortex_a35_smp
cortex_a53_smp
cortex_a55_smp
cortex_a57_smp
cortex_a5x_smp
cortex_a5_smp
cortex_a65ae_smp
cortex_a65_smp
cortex_a72_smp
cortex_a73_smp
cortex_a75_smp
cortex_a76ae_smp
cortex_a76_smp
cortex_a77_smp
cortex_a78_smp
cortex_a7_smp
cortex_a9_smp
linux
Adaptation layer for ThreadX
ThreadX is an advanced real-time operating system (RTOS) designed specifically for deeply embedded applications. To help ease application migration to ThreadX RTOS, Eclipse ThreadX provides adaption layers for various legacy RTOS APIs (FreeRTOS, POSIX, OSEK, etc.).
Component dependencies

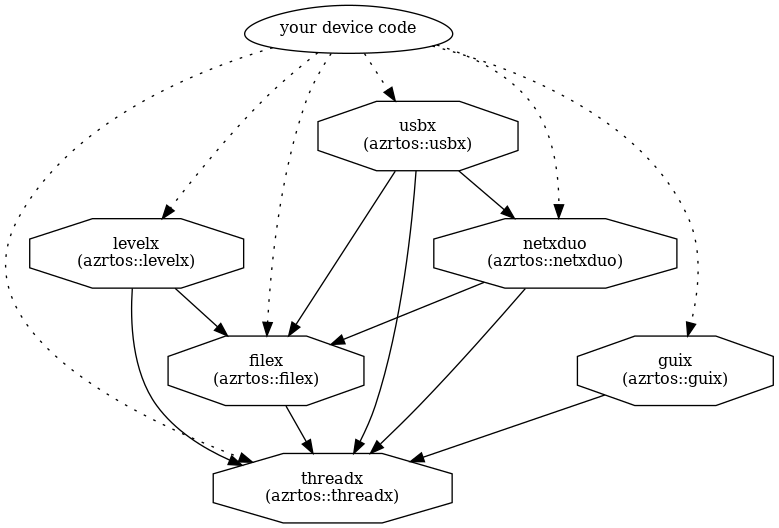

The main components of ThreadX RTOS are each provided in their own repository, but there are dependencies between them, as shown in the following graph. This is important to understand when setting up your builds.
You will have to take the dependency graph above into account when building anything other than ThreadX itself.
Building and using the library
Instruction for building the ThreadX as static library using Arm GNU Toolchain and CMake. If you are using toolchain and IDE from semiconductor, you might follow its own instructions to use ThreadX RTOS components as explained in the Getting Started section.
-
Install the following tools:
- CMake version 3.0 or later
- Arm GNU Toolchain for arm-none-eabi
- Ninja
-
Cloning the repo
$ git clone https://github.com/eclipse-threadx/threadx.git -
Define the features and addons you need in
tx_user.hand build together with the component source code. You can refer totx_user_sample.has an example. -
Building as a static library
Each component of ThreadX RTOS comes with a composable CMake-based build system that supports many different MCUs and host systems. Integrating any of these components into your device app code is as simple as adding a git submodule and then including it in your build using the CMake
add_subdirectory().While the typical usage pattern is to include ThreadX into your device code source tree to be built & linked with your code, you can compile this project as a standalone static library to confirm your build is set up correctly.
An example of building the library for Cortex-M4:
$ cmake -Bbuild -GNinja -DCMAKE_TOOLCHAIN_FILE=cmake/cortex_m4.cmake . $ cmake --build ./build
Licensing
License terms for using Eclipse ThreadX are defined in the LICENSE.txt file of this repo. Please refer to this file for all definitive licensing information for all content, incl. the history of this repo.
Resources
The following are references to additional ThreadX RTOS resources:
- Product introduction: https://github.com/eclipse-threadx/rtos-docs
- Product issues and bugs, or feature requests: https://github.com/eclipse-threadx/threadx/issues
- TraceX Installer: https://aka.ms/azrtos-tracex-installer
You can also check previous questions or ask new ones on StackOverflow using the threadx-rtos and threadx tags.
Security
Eclipse ThreadX provides OEMs with components to secure communication and to create code and data isolation using underlying MCU/MPU hardware protection mechanisms. It is ultimately the responsibility of the device builder to ensure the device fully meets the evolving security requirements associated with its specific use case.
Contribution
Please follow the instructions provided in the CONTRIBUTING.md for the corresponding repository.
